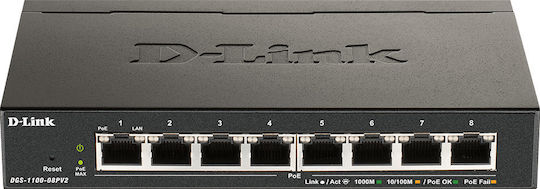

The D-Link DGS-1100 v2 switch connects devices via 8 Gigabit Ethernet ports supporting 10/100/1000 Mbps and offers Layer 2 management. QoS, VLAN and IGMP Snooping features help organize network traffic, while cable diagnostics and loop detection tools help identify problems. Its metal casing, fanless design and LED indicators for each port’s status complete its desktop design.

It can be managed through a web interface with IPv4 support or via D-Link Network Assistant (DNA). D-Link Green technology and the 802.3az Energy Efficient Ethernet (EEE) standard reduce power consumption when there is no network traffic.

• Type: Managed Layer 2 switch
• Ethernet ports: 8 × 10/100/1000 Mbps Gigabit Ethernet
• Port speed: Up to 1 Gbps
• Switching capacity: 16 Gbps
• Forwarding rate: 11.9 Mpps
• Operation: Plug and Play, with all ports operating simultaneously at full speed
• Layer 2 features: 802.3x Flow Control, HOL blocking prevention, loop detection and One-to-One or Many-to-One port mirroring
• Diagnostics: Cable testing and LED indicators for each port’s status
• QoS: 802.1p traffic prioritization, DSCP, 4 queues and WRR mode
• Bandwidth control: Per port, for ingress and egress traffic, with a minimum increment of 8 Kb/s
• VLAN: Port-based VLAN, 802.1Q Tagged VLAN, Management VLAN, Auto Surveillance VLAN, Auto Voice VLAN and Asymmetric VLAN
• VLAN groups: Up to 32 static groups and up to 4094 VIDs
• IGMP Snooping: IGMP v1/v2, supporting up to 128 groups
• Jumbo frames: Up to 9216 bytes
• MAC address table: 4K entries
• Static MAC addresses: Up to 32 entries
• Security features: Traffic segmentation, port security and Broadcast, Multicast and Unknown Unicast storm control
• Packet buffer: 1.5 Mbits
• Flash memory: 2 Mbytes
• Management: Web interface with IPv4 support and D-Link Network Assistant (DNA)
• Port features: Auto-negotiation, Auto MDI/MDIX, half/full-duplex at 10/100 Mbps and full-duplex at 1000 Mbps
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3af, 802.3at, 802.3x, 802.3az, 802.1p, 802.1d, 802.1w and 802.1q
• RFC standards: RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC2236 IGMP Snooping, RFC1213 MIBII and RFC1215 MIB Traps Convention
• Energy saving: D-Link Green and 802.3az Energy Efficient Ethernet (EEE)
• Enclosure: Metal
• Cooling: Fanless
• Mounting: Desktop or wall-mounted, with wall-mounting kit included
• Security slot: Kensington
• Power supply: External adapter, 100–240 VAC, 50/60 Hz
• Maximum power consumption: 4.94 W
• Standby power consumption: 1.93 W
• Heat dissipation: 16.85 BTU per hour
• MTBF: 1,456,992 hours
• Operating temperature: 0 to 40 °C
• Storage temperature: -40 to 70 °C
• Operating humidity: 0% to 90% RH, non-condensing
• Storage humidity: 0% to 95% RH, non-condensing
• Certifications: FCC Class B, CE Class B, VCCI Class B, BSMI, cUL, CE LVD, CB and RoHS
• Dimensions (W × H × D): 145 × 82 × 28 mm
• Weight: 34 g
