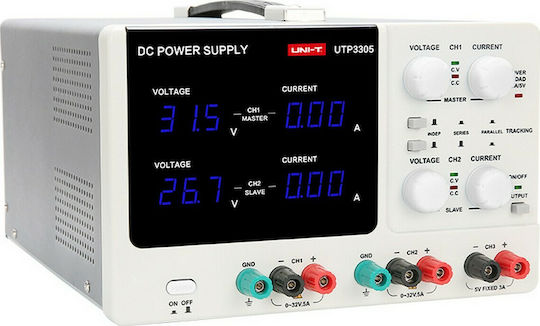

- 3-channel linear DC power supplies feature
- Low ripple/noise
- Constant voltage/current
- Over load protection
- Parallel/series
- Output on/off control
Τεχνικά χαρακτηριστικά
- Channel 1-2 output voltage: 0~32V
- Channel 3 output voltage: 5V
- Channel 1-2 output current: 0~5A
- Channel 3 output current: 3A
- Output power: 335W
- Load regulation: CV?1 x 10-4 +3mV, CC?2 x 10-4 +3mA
- Ripple and noise: CV?1mVrms, CC?3mArms
- Output regulation resolution: CV: 100mV (typical), CC: 10mA (typical)
- Tracking bias: 5x 10-3 +10mV
- Reliability: MTBF(e): ?2000hrs
- Display mode: 3-bit voltage and current dual display
- Input voltage: 115V AC/230V AC
- Frequency: 47Hz~63Hz
- Product size: 260 x 170 x 315mm
