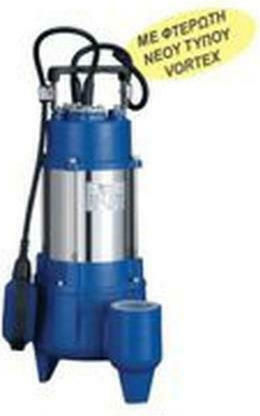

Plus SUB 13-9 M Single-phase Pump Waste Water / Sewage 1hp Stainless steel 230167
Submersible Water Pumps

Plus SUB 13-9 M Single-phase Pump Waste Water / Sewage 1hp Stainless steel 230167

Highly reliable pump suitable for household wastewater.

  • Type: SUB 13-9 M
  • Pump Type: Vortex
  • Power Supply: Electric Current
  • Motor Power (Hp): 1.00
  • Power (hp-Watt): 1Hp-736Watt
  • Voltage (Volt): 220...

Highly reliable pump suitable for household wastewater.

  • Type: SUB 13-9 M
  • Pump Type: Vortex
  • Power Supply: Electric Current
  • Motor Power (Hp): 1.00
  • Power (hp-Watt): 1Hp-736Watt
  • Voltage (Volt): 220 Volt/50 Hz
  • Use: Wastewater
  • Discharge Outlet Φ (Inch-mm): 2"-50mm
  • Max Head (M): 10.80
  • Max Flow Rate (m3/h): 21.8
  • Body Material: Cast Iron
  • Impeller Material: Cast Iron...
See full description See full description

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Voltage

    Single-Phase

    Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
  • See all
162 90 €
Delivery Thu, 16 Jul - Mon, 20 Jul
9,00 € to a Skroutz Point or 10,00 € to an address
Do you want it with 4,00 € shipping to Skroutz Point?
Sent from Greece
From Allwater 4.9 (62)
4.9 (62 reviews)
Greece
20+ pieces
See Water Pumps on the page of Allwater
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Product report

Description

Description

Highly reliable pump suitable for household wastewater.

  • Type: SUB 13-9 M
  • Pump Type: Vortex
  • Power Supply: Electric Current
  • Motor Power (Hp): 1.00
  • Power (hp-Watt): 1Hp-736Watt
  • Voltage (Volt): 220 Volt/50 Hz
  • Use: Wastewater
  • Discharge Outlet Φ (Inch-mm): 2"-50mm
  • Max Head (M): 10.80
  • Max Flow Rate (m3/h): 21.8
  • Body Material: Cast Iron
  • Impeller Material: Cast Iron
  • Liquid Temperature (°C): 40
  • Solid Passage Φ(mm): 35
  • Cable Length (M): 10
  • Float Switch: Yes
  • Additional Features: Stainless steel casing AISI 304
  • Net Weight (Kg): 17.50
  • Gross Weight (Kg): 18.70
  • Packaging Length (cm): 28.00
  • Packaging Width (cm): 20.00
  • Packaging Height (cm): 48.00

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Single-Phase

Voltage

Single-Phase

Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.
Horsepower
1 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
750 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Cable Length
10.8 m

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
Yes

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Outlet Nozzle
2"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.
Vortex
Yes

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Maximum Output
21.8 m³/h

Maximum Output

The maximum output or flow of a submersible water pump, as defined by the manufacturers, is the maximum amount of water the pump can move under ideal conditions, usually with zero head (i.e., no lift resistance).
Maximum Particle Size
35 mm

Maximum Particle Size

Specifies the largest size of solid particles (such as sand, stones, or other impurities) that the device can pump without clogging or being damaged.
Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
Yes
Stainless
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
