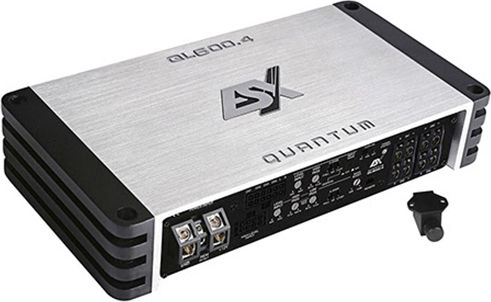

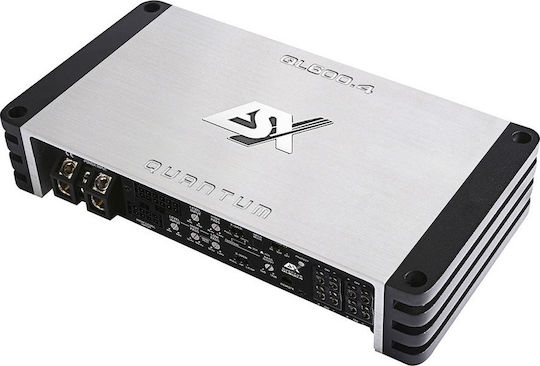

The QUANTUM QL amplifiers in the corresponding ESX series are technically the smaller siblings of the QE models. Ideally, they can be used where installation space is very limited. They are also emission-free and feature high-quality Class-D technology, meeting all demands for performance, sound quality, and adjustment options.
The visual appearance and dimensions of the QL models are shared with the XE-DSP amplifiers and the X-DSP processor, allowing for the combined use of these devices for the implementation of high-quality DSP systems with great power. The QUANTUM QL models also come with an affordable remote control.
- Advanced Class D technology with very high efficiency
- Selected and sound-tuned components
- Massive aluminum heatsink
- Heavy side cast frame
- High Level Inputs with Error Protection System
- Auto Turn-On, Start/Stop Ready
- MOSFET PWM Power Supply, 3-way Protection Circuit
- Compact Bass Remote
4-Channel Class D Digital Amplifier
680 Watt RMS Output Capacity
- 4 x 100/170 Watts RMS @ 4/2 Ω
- 2 x 340 Watts RMS @ 4 Ω bridged
- HP 50-5000 Hz (CH1/2), HP 10-500 Hz (CH3/4)
- LP 50-5000 Hz (CH3/4), Copy-Mode CH3/4 > CH1/2
- Bass-Boost 0-12 dB, Bandpass Mode, Input Mode
- High Level Inputs, Auto Turn-On Function
- Compact Bass Remote
- Dimensions: 226 x 43 x 120 mm
- Efficiency up to 86%
- Number of Channels
- 4 Channels
- Output Power (4 Ohm)
- 100 watt / channel
- Output Power (2 Ohm)
- 170 watt / channel
- Amplifier class
- D
