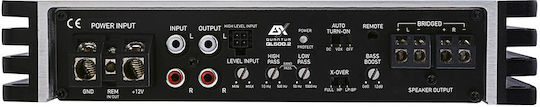

The ESX Quantum QL 500.2 car amplifier features Class D technology and a compact design, making it suitable for installation in spaces with limited room. Its high-level inputs include an error protection system, while the Auto Turn-On function switches the amplifier on automatically.
The amplifier features HP and LP filters, adjustable Bass Boost, and Bandpass mode. It includes a compact Bass Remote control, while its aluminium heatsink and 3-way protection circuit are key components of its design.
- Channels: 2
- Class: D
- Output power at 4 Ω: 2 x 150 W RMS
- Output power at 2 Ω: 2 x 250 W RMS
- Bridged output power at 4 Ω: 1 x 500 W RMS
- Efficiency: Up to 87%
- Inputs: High-level with error protection system
- Automatic switch-on: Auto Turn-On
- Compatibility: Start/Stop
- HP filter: 10–500 Hz
- LP filter: 50–5000 Hz
- Bass boost: 0–12 dB
- Mode: Bandpass
- Remote control: Compact Bass Remote
- Heatsink: Aluminium
- Power supply: MOSFET PWM
- Protection circuit: 3-way
- Dimensions: 226 x 43 x 120 mm
- Number of Channels
- 2 Channels
- Output Power (4 Ohm)
- 150 watt / channel
- Output Power (2 Ohm)
- 250 watt / channel
- Amplifier class
- D
