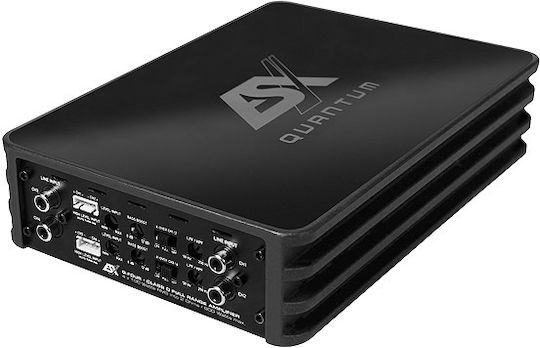

The ESX Quantum Q-Four four-channel car amplifier uses Class D amplification in a compact body. It delivers 60 W RMS per channel at 4 Ω or 100 W RMS per channel at 2 Ω, while in bridged mode it delivers 200 W RMS per channel at 4 Ω.
- Channels: 4
- Amplifier class: D
- Output power at 4 Ω: 60 W RMS per channel
- Output power at 2 Ω: 100 W RMS per channel
- Bridged power: 200 W RMS per channel at 4 Ω
- Maximum output power: 800 W
- High-pass filter (HPF): 50–250 Hz
- Low-pass filter (LPF): 50–250 Hz
- Bass boost: 0–12 dB, on 2 channels
- Inputs: High-level
- Automatic turn-on: Yes
- Dimensions: 150 x 50 x 220 mm
- Efficiency: Up to 83%
- Number of Channels
- 4 Channels
- Output Power (4 Ohm)
- 60 watt / channel
- Output Power (2 Ohm)
- 120 watt / channel
- Amplifier class
- D
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
