Lamptron SM436 (Sync Edition) Black

The Lamptron SM436 Sync Edition PCI RGB and fan controller offer rich functionality and high compatibility. It supports up to four fans with or without PWM control and RGB products with or without...

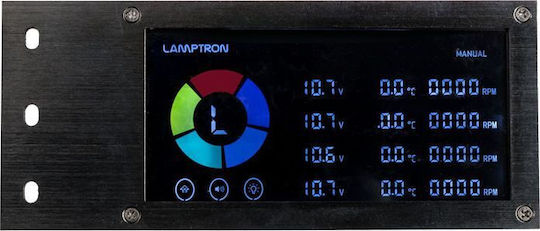

The Lamptron SM436 Sync Edition PCI RGB and fan controller offer rich functionality and high compatibility. It supports up to four fans with or without PWM control and RGB products with or without digital RGB LEDs. The separate LC display can be attached to the PCI slots.

The control is via infrared remote control. Power is provided through a 4-pin Molex...

See full description See full description
166 89 €
Delivery Tue, 17 Nov - Thu, 19 Nov
3,50 € to a Skroutz Point or 4,50 € to an address
Do you want it with Free shipping?
Sent from Greece
From Getters 4.6 (112)
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund. Learn more

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing

Description

Description

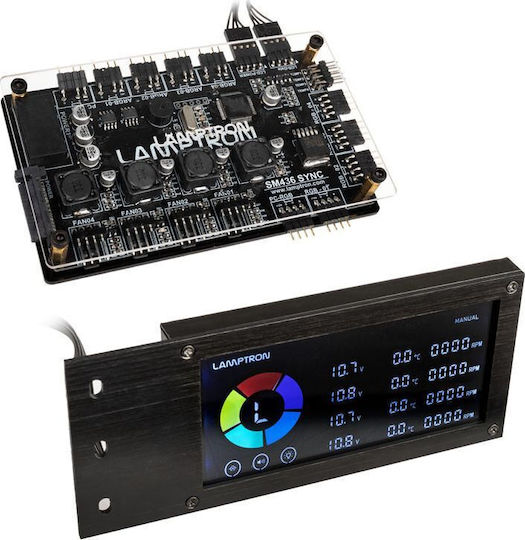

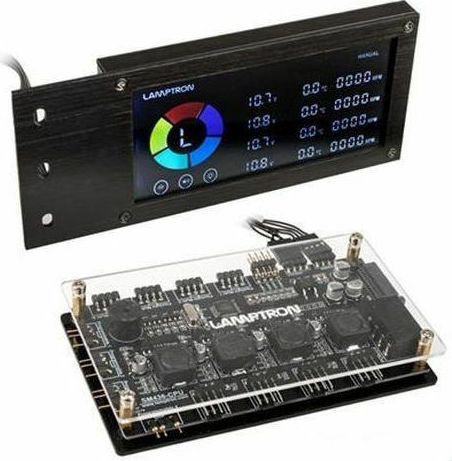

The Lamptron SM436 Sync Edition PCI RGB and fan controller offer rich functionality and high compatibility. It supports up to four fans with or without PWM control and RGB products with or without digital RGB LEDs. The separate LC display can be attached to the PCI slots.

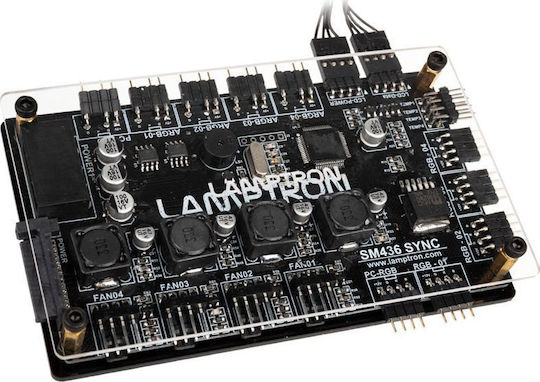

The control is via infrared remote control. Power is provided through a 4-pin Molex socket, and a total of four fans can be connected to the controller board.

Additionally, it is possible to connect four 4-pin RGB fans or LED strips (12VGRB) and four digitally addressable RGB 3-pin devices (5VDG). There are also four temperature sensors that can be connected to the board.

  • Dimensions (boards): 121.5 x 21 x 72.5 mm (H x W x D)
  • Dimensions (display): 140 x 12.5 x 60 mm (H x W x D)
  • Display: 95 mm x 45 mm
  • Compatibility: 3 x PCI slots (display)
  • Material: aluminum
  • Color: black
  • Fan channels: 4 (max. 36 W per channel)
  • Voltage: 0-12 V
  • Connections:
    • 1x 4-pin Molex
    • 1x SATA
    • 4x 2-pin temperature sensor
    • 1x PC -RGB W
    • 1x PC-ADD WRGB-LED
    • 4x 3-pin RGB (5VDG, up to 60 LEDs per channel)
    • 4x 4-pin RGB (12VGRB, up to 60 LEDs per channel)

Manufacturer

See full description

Specifications

Specifications

Type
Fan Controller

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
