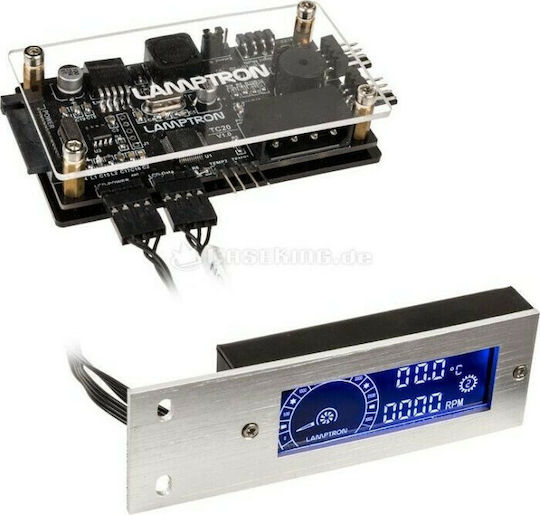

LED RGB and fan lighting controller with a separate LCD display and infrared remote control. Supports RGB LED products with up to 60 LEDs, PWM and non-PWM fans, as well as fan or strip lighting up to 20 W via 4-pin (12VGRB) connection. The display shows temperature, voltage, and fan speed. Includes two temperature sensors.

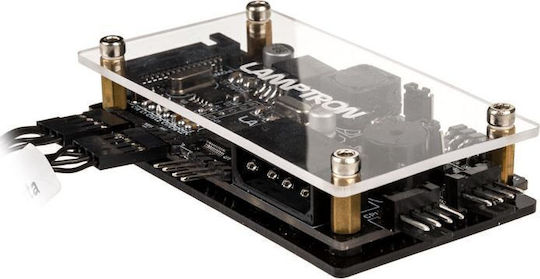

• Control board for RGB LED lighting

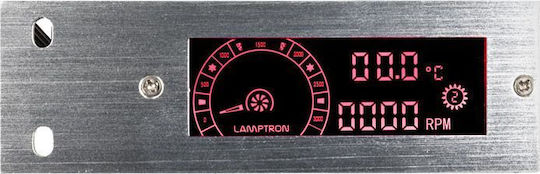

• Separate LCD display
• Fan input and output for speed control
• Socket for up to 60 RGB LEDs (12VGRB)
• Power supply via 4-pin Molex and SATA
• Infrared remote control
• Ability to connect multiple RGB LED products in series or via Y-cable
• The control board can be installed inside the case and hidden
• The display connects to 2 free PCI slots

Technical details:

• Control board dimensions: 83 x 21 x 46 mm (L x H x W)
• Display dimensions: 100 x 12.5 x 32 mm (L x H x W)
• Display size: 55 mm x 18 mm
• Compatibility: 2 PCI slots (display)
• Material: Aluminum
• Fan channels: 1
• Voltage: 0 - 12 V
• Connections: 1x 4-pin Molex, 1x SATA, 2x 2-pin temperature sensors
• RGB LED sockets: 1x 4-pin RGB (12VGRB, up to 60 LEDs)

Package contents:

• 1x control board with acrylic glass cover
• 1x LCD display
• 2x controller/display connection cables
• 2x temperature sensors
• 1x infrared remote control
• Mounting materials for the display
