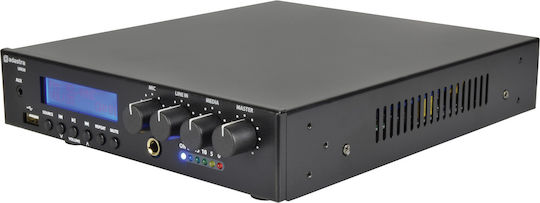

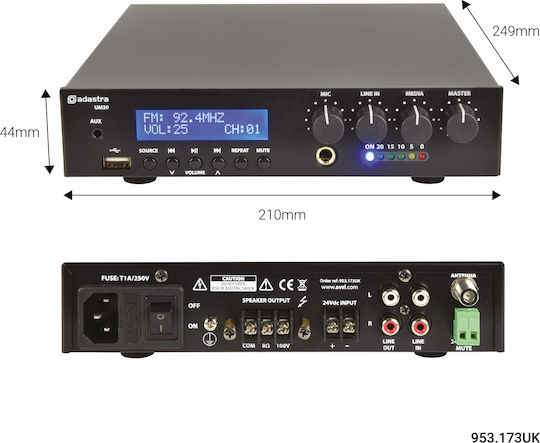

Adastra UM30 Amplifier-Mixer 30W RMS

The UM60 from the UM series (Ultra Compact Mixer-Amplifiers 100V) by Adastra, is a 100V amplifier with USB, FM receiver, and BT wireless receiver in an ultra-compact enclosure. The microphone input, line input, and USB/FM/BT sections are governed by the front panel volume controls and the main volume. The mono output either to a 100V line or to an 8 Ohms speaker load is connected via screw terminals on the rear panel.

Available with hardware for mounting 2 units side-by-side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.

Ultra-compact

Efficient Class D amplifier design

Internal USB/FM/BT audio player

100V line or 8 Ohms operation

Features:

• Power supply: 170-264Vac, 50Hz (IEC) or 24Vdc
• Amplifier construction: Class D + transformer output
• Audio sources: Internal USB/FM/BT player unit
• Inputs: 1 x mic (6.3 mm), 1 x line (2 x RCA), 1 x aux (3.5 mm)
• Line output: 2 x RCA (mono)

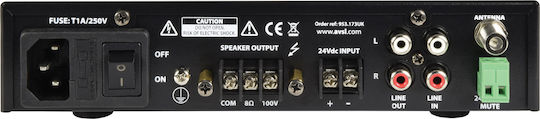

• Speaker outputs: Screw terminals - 100V / 8 Ohms / Com
• DC power: Screw terminals 24Vdc
• Mute: 24V relay
• THD:
