TVT TD-3104B1-4P DVR NVR TD-3104B1-4P
Surveillance Video Recorders

TVT TD-3104B1-4P DVR NVR TD-3104B1-4P

Key features:

  • Type: Network Video Recorder (NVR)
  • Number of channels: 4
  • Resolution up to 1080P
  • Compression technology: H.265
  • Supports HDD up to 8TB
See full description

Top specs

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    Full HD+

    A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    PoE

    These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    Alarm Input

    Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").

    Alarm Output

    Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all

User Manual

67 28 €
Delivery Friday, 06 November
3,50 € to a Skroutz Point or 4,50 € to an address
Do you want it with Free shipping?
Sent from Greece
From Shop404 5.0 (7)
5.0 (7 reviews)
Greece
19 pieces
See CCTV Systems on the page of Shop404
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Product report

Description

Description

Capabilities

The NVR TD-3104B1-4P recorder from TVT supports 4 PoE channels with a resolution of up to 6MP and H.265 video encoding. Additionally, it adopts the most advanced SOC technique to ensure high-definition recording on each channel and supports HDD up to 8TB.

H.265+ Video Compression

The H.265+ compression technology offers a significant reduction in data volume, resulting in substantial benefits in the required bandwidth as well as the storage space of the system.

Features

  • Operating System: Linux
  • Network Input Resolution: 6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF
  • Output: HDMI x1: 1920x1080 / 1280x1024 / 1024x768, VGA: 1920x1080 / 1280x1024 / 1024x768
  • Compression Standard: 265S / H.265+ / H.265 / H.264
  • Local Output: (HDMI supports audio output)
  • Resolution: 6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF
  • Frame Rate: 5MP or lower @ 30fps/25fps (NTSC/PAL).
  • Live View/Playback: 1CH 6MP, 4CH 720P
  • Protocol: TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF
  • LPR Plate Recognition
  • HDD Interface: 2.0 x1, max 8T

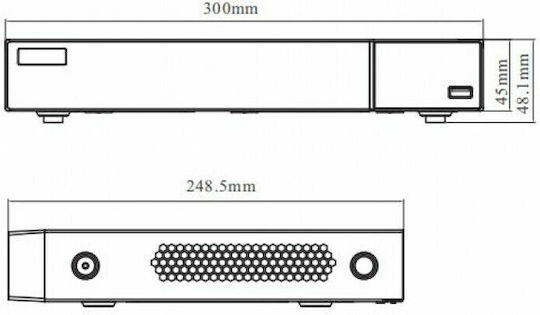

  • Dimensions (W x D x H): 255 x 222 x 42mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Guides

User Manual

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
Full HD+

Resolution

Full HD+

A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Number of POE
4

Number of POE

Specifies how many IP cameras can be connected directly to the recorder (NVR) and powered by it. Each PoE port provides power and data through the same cable (plug-and-play).
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
PoE, VGA, HDMI, Alarm Input, Alarm Output, USB

Ports

PoE

These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
Alarm Output
Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
8 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
