- Steel thickness: 1.25mm
- Test pressure: 13 bar
- Operating pressure: 10 bar
- Color RAL 9010 white, baked at 190°C
- Heating outputs are based on a room temperature of 20°C according to DIN 4704
ποιος κατασκευαζει τα θερμαντικα πανελ;
Description
Specifications

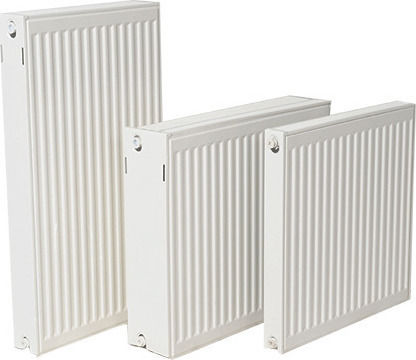

Comrad radiators are elegantly designed and optimized for maximum efficiency while being manufactured using the most advanced technology.
They are delivered complete with side covers and grilles, which are factory-installed. They are painted in white (RAL 9010) and each unit undergoes meticulous cleaning and degreasing, priming, and then powder coating.
Features
- Steel thickness: 1.25mm
- Test pressure: 13 bar
- Operating pressure: 10 bar
- Color RAL 9010 white, baked at 190°C
- Heating outputs are based on a room temperature of 20°C according to DIN 4704

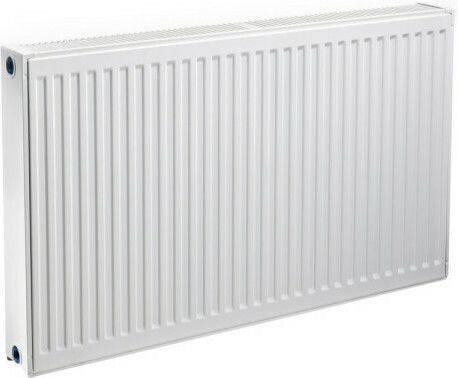

External loop panel
In external loop heating panels, the switch fits on one side of the body and has an external tube that connects the top to the bottom of the radiator.
Column Type
The column type is denoted by the number 22 (double column), which means it has 2 water-bearing columns and 2 meanders welded to increase the heated surface area.
The total body thickness is 10 cm.
How to choose the right radiator size?
It is very important to make the right choice of radiator according to the dimensions of your space. The sizing of radiators should be done by an engineer after studying the space and calculating losses. Incorrect selection of the radiator can lead to insufficient heating or excessive heating of the space, resulting in energy waste.
How is the calculation of radiator calories per square meter done?
A practical and simple way to calculate the required calories yourself is to multiply the height, width, and length of your room in meters. Then, multiply the result by the number 50, which approximately represents potential losses.
However, be careful this calculation method is indicative and does not replace the study that an engineer will conduct, which will be absolutely accurate.
- Type
- Panel
- Heating Efficiency (kcal/h)
- 1876 kcal/h
- Installation Type
- External Loop
- Type of Columns
- 22
- Colour
- White
- Height
- 900 mm
- Length
- 600 mm
