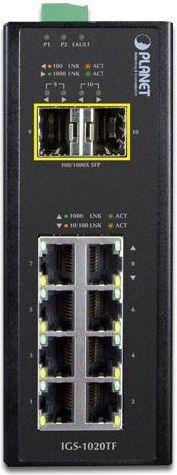

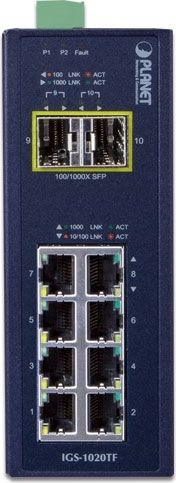

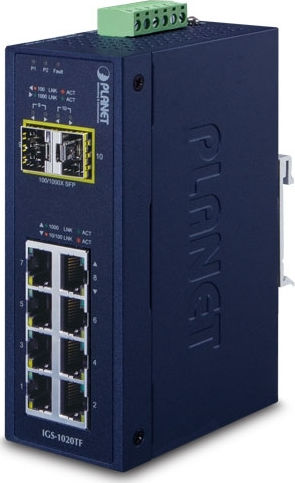

Planet IGS-1020TF Unmanaged L2 PoE+ Switch with 8 Gigabit (1Gbps) Ethernet Ports and 2 SFP Ports
Switches

Planet IGS-1020TF Unmanaged L2 PoE+ Switch with 8 Gigabit (1Gbps) Ethernet Ports and 2 SFP Ports

The Planet IGS-1020TF industrial unmanaged Layer 2 switch connects devices through 8 Gigabit Ethernet ports and features 2 SFP slots. It has a metal enclosure with an IP30 protection rating and can...

The Planet IGS-1020TF industrial unmanaged Layer 2 switch connects devices through 8 Gigabit Ethernet ports and features 2 SFP slots. It has a metal enclosure with an IP30 protection rating and can be mounted on a DIN rail or wall. It is powered by 24 V DC and operates in temperatures from -40 to 75 °C.

  • Ethernet ports: 8 Gigabit Ethernet 10/100/1000 Mbps
    • ...
See full description See full description
216 80 €
Delivery Fri, 13 Nov - Tue, 17 Nov
Free shipping cost
Sent from Greece
From Techstores 4.8 (100)
4.8 (100 reviews)
Greece
2 pieces
See Networking on the page of Techstores
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund. Learn more

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

The Planet IGS-1020TF industrial unmanaged Layer 2 switch connects devices through 8 Gigabit Ethernet ports and features 2 SFP slots. It has a metal enclosure with an IP30 protection rating and can be mounted on a DIN rail or wall. It is powered by 24 V DC and operates in temperatures from -40 to 75 °C.

  • Ethernet ports: 8 Gigabit Ethernet 10/100/1000 Mbps
  • SFP slots: 2
  • Switching capacity: 20 Gbps
  • Forwarding rate: 14.88 Mpps
  • MAC address table: 4000 entries
  • PoE support: 802.3af, 802.3at
  • Power supply: 24 V DC
  • Power consumption: 8.7 W
  • Enclosure: Metal
  • Protection rating: IP30
  • Mounting: DIN rail, wall or rack
  • Operating temperature: -40 to 75 °C
  • Storage temperature: -40 to 75 °C
  • Permitted relative humidity: 5–95%
  • Dimensions (width × length × height): 210 × 150 × 93 mm
  • Supported cables: Cat5, Cat5e, Cat6
  • Cabling technology: Copper Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T
  • Communication standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Features: Full duplex, Auto-MDI/MDI-X, store-and-forward
  • Maximum transmission distance: 60 km
  • Heat dissipation: 26.69 BTU/hour

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Network Specifications

Type
Unmanaged
Layer
L2
PoE
Yes
PoE Version
802.3af, 802.3at

PoE Version

Power over Ethernet (PoE) is a technology that allows network switches to simultaneously transmit power and data over Ethernet cables. Before choosing PoE solutions, it is important to know how much power your devices consume.

802.3af
PoE (802.3af) up to 15.4W per port suitable for basic power supply requirements for devices such as IP Phones, Basic IP Cameras, 802.11n AP.
802.3at
PoE+ (802.3at) up to 30W per port suitable for high power device requirements, such as IP Video Phones, HD PTZ IP Cameras, 802.11ac (WiFi 5) AP, Small Audio Speakers.

Technical Specifications

Ethernet connections
8 Port
Ethernet Speed
1000 Mbps
SFP connections
2 Port
Switching Speed
20 Gbps
MAC Address Table
4000 entries
Rack mounting
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
