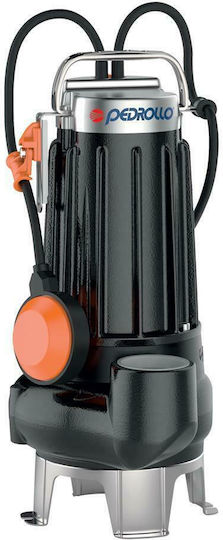

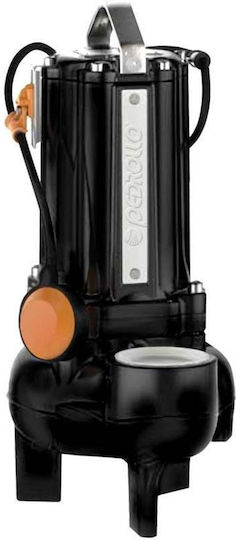

Pedrollo VXCm 15/35 Single-phase Pump Waste Water / Sewage 1.5hp 48SGV95C0A1U
Submersible Water Pumps

Pedrollo VXCm 15/35 Single-phase Pump Waste Water / Sewage 1.5hp 48SGV95C0A1U

The pump is made of heavy-duty cast iron, ensuring absolute stability and wear resistance. It is suitable for wastewater with particles and sludge.

  • Type: VXCm 15/35
  • Pump Type: Vortex
  • Power Supply:...

The pump is made of heavy-duty cast iron, ensuring absolute stability and wear resistance. It is suitable for wastewater with particles and sludge.

  • Type: VXCm 15/35
  • Pump Type: Vortex
  • Power Supply: Electric Current
  • Motor Power: 1.50 Hp
  • Power: 1.50 Hp - 1100 Watt
  • Voltage: 220 Volt/50 Hz
  • Current Consumption: 7.40 A
  • Usage: Wastewater
  • Discharge Outlet: Φ 1 1/2"...
See full description See full description

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Voltage

    Single-Phase

    Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

  • Manometric Height

    14

    The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

    • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
    • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
  • See all
448 03 €
Delivery Thu, 16 Jul - Mon, 20 Jul
58,00 € shipping cost
Do you want it with 53,00 € shipping?
Sent from Greece
From Thermocity 4.8 (67)
4.8 (67 reviews)
Greece
20+ pieces
See Water Pumps on the page of Thermocity
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

The pump is made of heavy-duty cast iron, ensuring absolute stability and wear resistance. It is suitable for wastewater with particles and sludge.

  • Type: VXCm 15/35
  • Pump Type: Vortex
  • Power Supply: Electric Current
  • Motor Power: 1.50 Hp
  • Power: 1.50 Hp - 1100 Watt
  • Voltage: 220 Volt/50 Hz
  • Current Consumption: 7.40 A
  • Usage: Wastewater
  • Discharge Outlet: Φ 1 1/2" - 40 mm
  • Max Head: 14.00 m
  • Max Flow Rate: 30.00 m3/h
  • Body Material: Cast Iron
  • Impeller Material: Stainless Steel AISI 304
  • Fluid Temperature: 40 °C
  • Solid Passage: Φ 40 mm
  • Max Submersion Depth: 10 m
  • Cable Length: 10 m
  • Float: Yes
  • Additional Features: They have a double seal
  • Net Weight: 19.30 Kg
  • Product Length: 24.30 cm
  • Product Width: 19.00 cm
  • Product Height: 40.30 cm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Single-Phase

Voltage

Single-Phase

Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.
Horsepower
1.5 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
1125 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
Yes

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Outlet Nozzle
1 1/2"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.
Vortex
Yes

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Maximum Head Height
14 m

Maximum Head Height: 14


The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

  • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
  • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
Maximum Output
30 m³/h

Maximum Output

The maximum output or flow of a submersible water pump, as defined by the manufacturers, is the maximum amount of water the pump can move under ideal conditions, usually with zero head (i.e., no lift resistance).
Pump Submersion Depth
10 m
Maximum Particle Size
40 mm

Maximum Particle Size

Specifies the largest size of solid particles (such as sand, stones, or other impurities) that the device can pump without clogging or being damaged.
Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
No
Stainless
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

The pump is made of heavy-duty cast iron, ensuring absolute stability and wear resistance. It is suitable for wastewater with particles and sludge.

  • Type: VXCm 15/35
  • Pump Type: Vortex
  • Power Supply: Electric Current
  • Motor Power: 1.50 Hp
  • Power: 1.50 Hp - 1100 Watt
  • Voltage: 220 Volt/50 Hz
  • Current Consumption: 7.40 A
  • Usage: Wastewater
  • Discharge Outlet: Φ 1 1/2" - 40 mm
  • Max Head: 14.00 m
  • Max Flow Rate: 30.00 m3/h
  • Body Material: Cast Iron
  • Impeller Material: Stainless Steel AISI 304
  • Fluid Temperature: 40 °C
  • Solid Passage: Φ 40 mm
  • Max Submersion Depth: 10 m
  • Cable Length: 10 m
  • Float: Yes
  • Additional Features: They have a double seal
  • Net Weight: 19.30 Kg
  • Product Length: 24.30 cm
  • Product Width: 19.00 cm
  • Product Height: 40.30 cm
