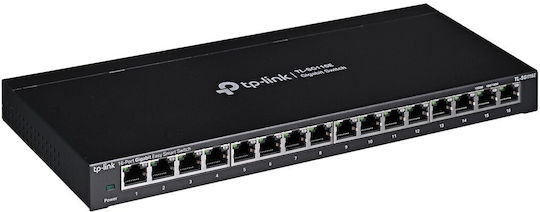

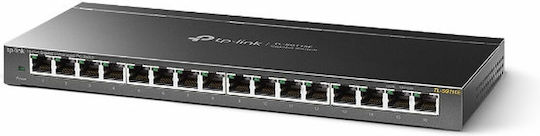

The TP-LINK TL-SG116E v1 switch connects up to 16 devices via Gigabit Ethernet ports and works straight out of the box, with no initial setup required. It can be managed through a web interface or software, while QoS prioritizes voice and video traffic, and IGMP Snooping optimizes multimedia distribution. It has a metal casing, operates without a fan, and adjusts power consumption according to the connection status and cable length.

• Type: Unmanaged Layer 2 switch
• Ports: 16 RJ45 10/100/1000 Mbps, with Auto-Negotiation and Auto-MDI/MDIX
• Switching capacity: 32 Gbps
• Packet forwarding rate: 23.81 Mpps
• MAC address table: 8,000 entries
• Packet buffer memory: 4.1 Mb
• Jumbo Frame: 9 KB
• Standards and protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• QoS: Port-based, 802.1p and DSCP priority, with 4 priority queues
• Layer 2 features: IGMP Snooping V1/V2/V3, static link aggregation, Port Mirroring, cable diagnostics, and loop prevention
• Traffic control: Rate Limiting and Storm Control
• VLAN: Up to 32 concurrent VLANs from 4,000 VLAN IDs, with MTU VLAN, Port VLAN, and Tag VLAN
• Forwarding method: Store and Forward
• Management: Web interface and software for Microsoft Windows
• Supported cables: For 10BASE-T, Category 3, 4, or 5 UTP; for 100BASE-TX, Category 5 or 5e UTP; for 1000BASE-T, Category 5, 5e, 6, or higher UTP; also EIA/TIA-568 100 Ω STP, with a maximum length of 100 m
• Casing: Metal
• Cooling: Fanless

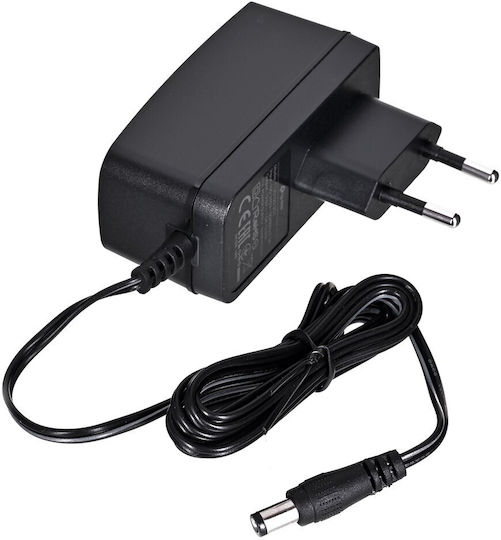

• Power supply: External power adapter with a 9 V DC / 0.6 A output
• Maximum power consumption: 9.19 W at 220 V / 50 Hz
• Maximum heat dissipation: 31.36 BTU/h
• Dimensions (W × D × H): 286 × 111.7 × 25.4 mm
• Certifications: FCC, CE, RoHS
• Operating temperature: 0–40 °C
• Storage temperature: -40–70 °C
• Operating humidity: 10–90%, non-condensing
• Storage humidity: 5–90%, non-condensing
