The TCW series provides top-notch audio performance with a rigid and robust polymer frame, minimizing distortion and vibrations. The speakers are suitable for audio systems and home theaters, as well as for commercial applications.

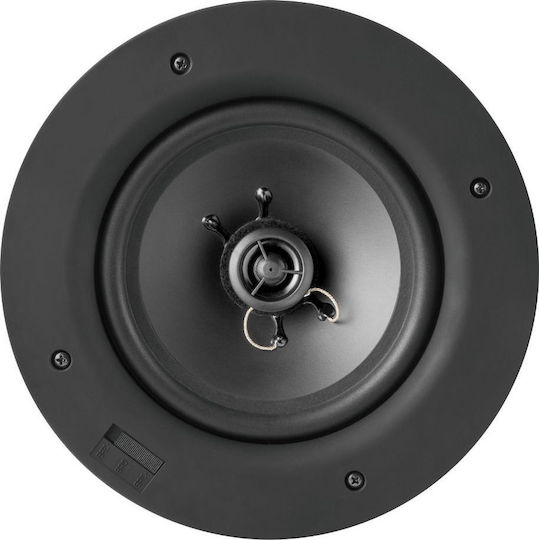

The TCW-480R SLIM features an ultra-thin enclosure, ideal for installations in shallow spaces (only 6.5 cm deep) and delivers high-quality sound performance.

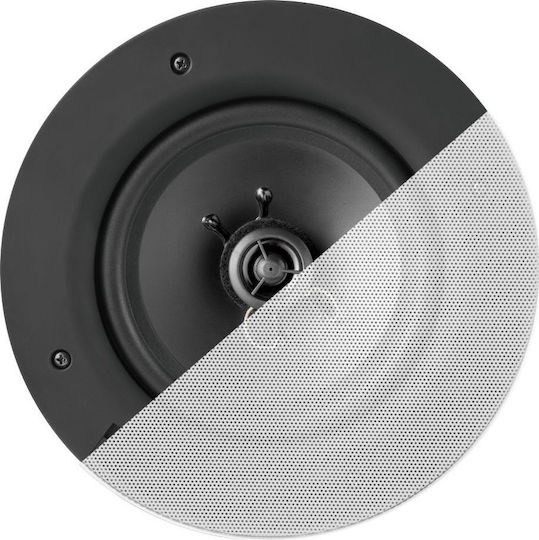

The magnetically mounted grille of the speaker ensures nearly invisible mounting on walls or ceilings while providing clear and natural sound.
- Ceiling mount design, 2-way
- Ultra-thin EX enclosure
- TSLB magnetically mounted grille
- TEI support bracket
- TIMPC enclosure
- TEC connection terminals
- Power 100W MAX
- 75W RMS
- Frequency response 42Hz - 20kHz
- Impedance 8ohm
- Sensitivity 90dB
- High-frequency driver 13 mm (0.5") PEI
- ± 3dB treble
- Bass control 165 mm (6.5") Kevlar®
- Dimensions (H x W x D or Dia x D) 23.4 x 6.7 cm
- Cutout dimensions (H x W or Dia) 20.4 cm
- Minimum mounting depth 6.5 cm
Technical Specifications
- Power (RMS)
- 75 W
- Freequency Range
- 42 - 20000 Hz
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 90 dB
Main Specifications
- Placing
- Ceiling
- Quantity
- Pair
- Colour
- White
Dimensions
- Height
- 23.4 cm
- Width
- 23.4 cm
