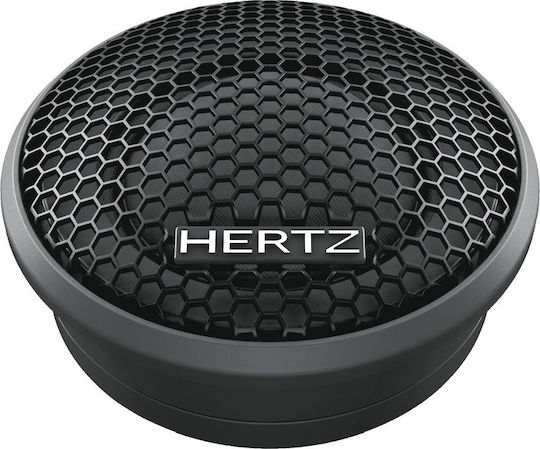

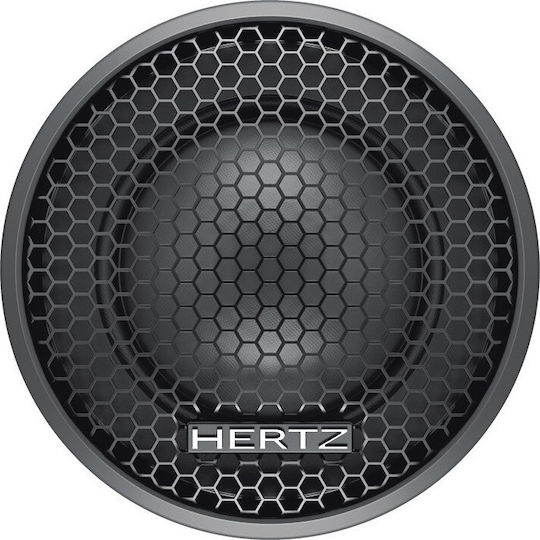

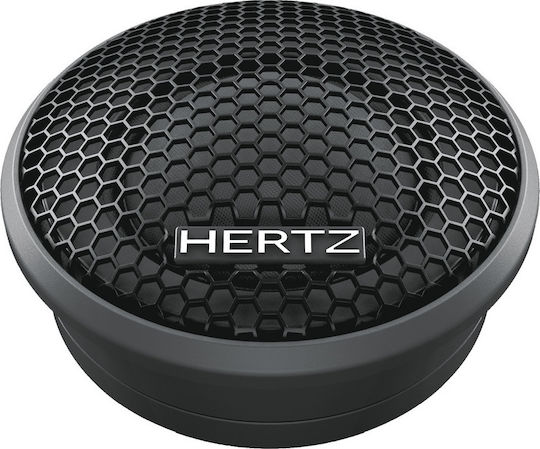

The Hertz MP 25.3 car tweeter set features a Tetolon dome and a 25 mm voice coil. The central tuning duct in the center of the neodymium magnetic circuit allows air to circulate between the dome and the rear loading chamber. Its low resonance frequency supports connection to the woofer crossover point, while its frequency response ranges from 1.4 kHz to 22.5 kHz.
- Type: Tweeter
- Shape: Round
- Quantity: 1
- Diameter: 29 mm
- Sensitivity: 91 dB
- Impedance: 4 Ohm
- Maximum power: 120 W
- High-pass filter: At 2.5 kHz, 12 dB per octave
- Magnet: Neodymium
- Dome material: Tetolon
- Voice coil diameter: 25 mm
- Magnet dimensions: 24.5 × 6 × 3.5 mm
- Resonance frequency: 1200 Hz
- Product Number
- 02.01.0201
- Sensitivity
- 12 dB
- Shape
- Round
- Type & Sound Characteristics
- -
- Set
- Yes
- Impedance
- 4 Ohm
