Self-powered 2-way speaker with bass reflex design.
Capabilities and Features:
- Power Capacity: 700W + 200W RMS
- DSP: 6 presets, 2 user-programmable presets with 5 parameters each
- High-pass filter, mic/line selection
- Low, mid & high settings, optional delay 0 - 3.5m
- Limiter modes: Max SPL / Max Quality
Technical Specifications:
- Type: 2-way
- Low power: 700/1400
- High power: 200/400
- LF / HF (inch): 10 - 2 coil / 1.4 - 1 coil
- Frequency range (@-6dB): 58Hz - 20KHz
- SPLmax cont/peak: 124 / 131
- Dispersion: 90°H x 60°V constant directivity horn
- Input Resistance (kohm): 22
- Cabinet construction: gas-injected polypropylene molded enclosure

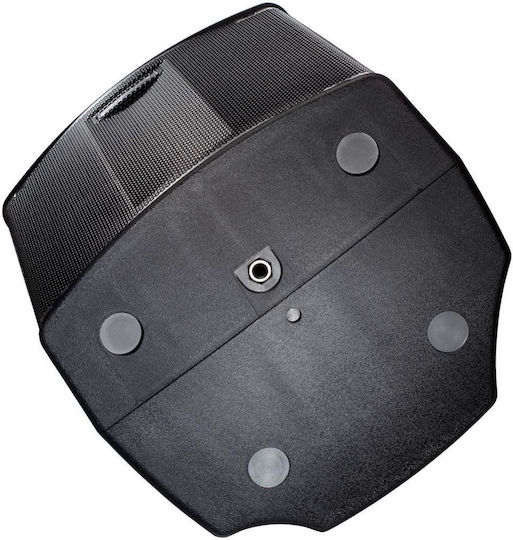

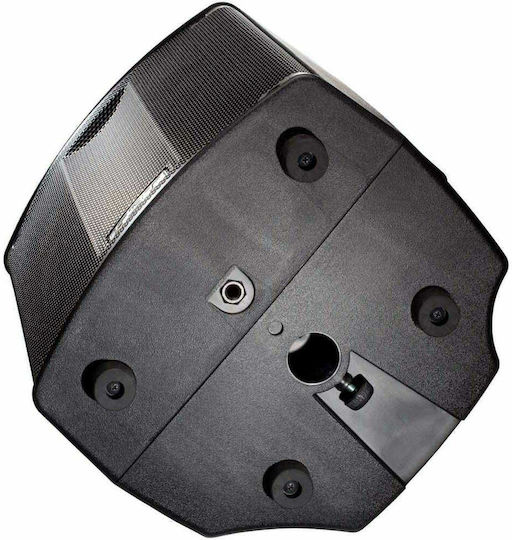

- Components: 2 x M10 suspension points, 35mm (1.3/8”) top-hat speaker stand socket, wall bracket mount flange plate

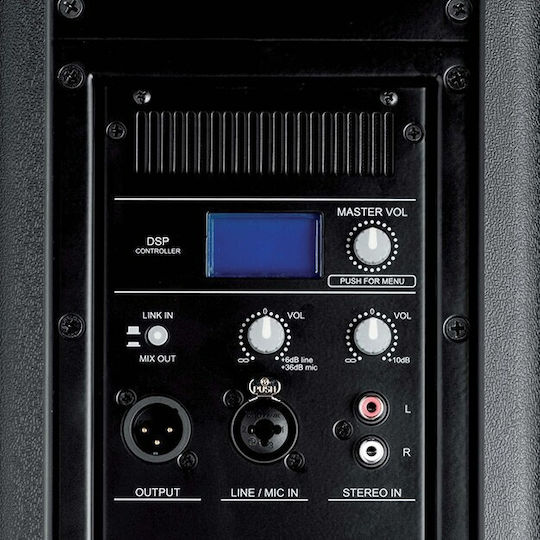

- Control Panel: balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder
- Input: XLR with loop, RCA STNet
- Dimensions: 320 x 550 x 275 mm
- Weight: 10.3 Kg
Dimensions
- Functionality
- Active
- Type
- Speaker
- Power (RMS)
- 900 W
- Bass Driver
- 10 "
- Weight
- 10.3 kg
- Quantity
- Piece
- Set
- No
- Colour
- Black
- Line Array
- -
- Battery Speaker
- -
- Height
- 55 cm
- Width
- 32 cm
- Length
- 27.5 cm
Connectivity
- Connection Technologies
- RCA, XLR
