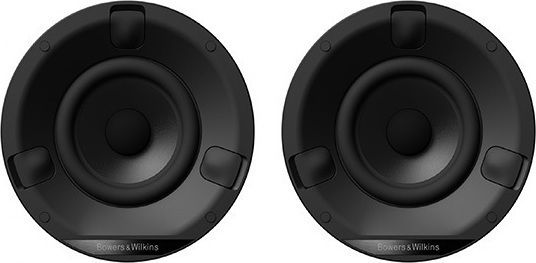

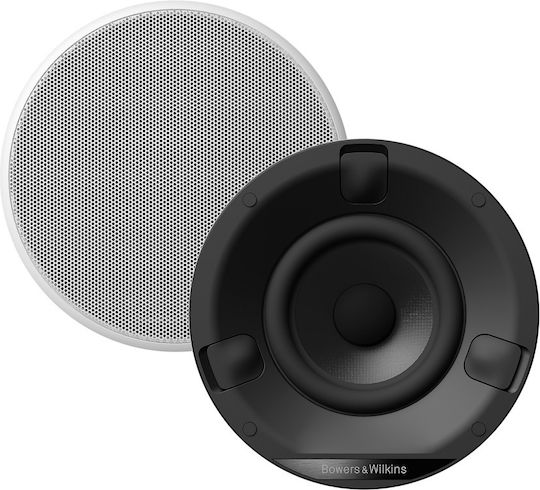

The Bowers & Wilkins CCM632 is an installation speaker featuring a unique 75mm (3 inch) full-range driver that delivers balanced sound and avoids the traditional issues of small speakers, while installing in less than 150mm (6”) diameter. It features the new and innovative ZipDogs mounting method that simplifies installation and can handle almost any frame thickness. Each speaker comes with an integrated enclosure to minimize sound leakage into adjacent spaces. The speakers are supplied in pairs, with each package including round and square magnetic and fully customizable grilles/frames.
- Driver: 1x Ø75mm (3 in) paper cone full-range
- Frequency range (-6dB): 100Hz – 17kHz
- Frequency response (+/-3dB): 112Hz - 16kHz
- Recommended amplifier power: 10W – 60W
- Sensitivity: 84dB (2.83V, 1m)
- Nominal impedance: 8Ω (5Ω minimum)
- Frame: Ø147mm (5.8 in)
- Required cutout: Ø120mm (4¾ in)
- Depth behind surface: 100mm (4 in)
- Protrusion: 5.5mm (0.22 in)
- Pre-construction kit: PMK C3
- Enclosure: Integrated
- Grille options: Round and square grilles included
- Product Number
- ccm632
Technical Specifications
- Power (RMS)
- 10 W
- Nominal Impendance
- 8 ohm
- Sensitivity
- 84 dB
Main Specifications
- Placing
- Ceiling, In Wall
- Quantity
- Pair
- Colour
- Black
Dimensions
- Height
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
