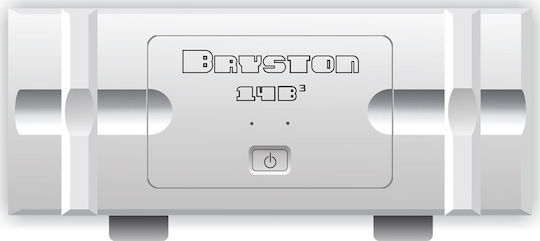

The Bryston 14B³ power amplifier is a two-channel stereo amplifier, delivering 600 W per channel into 8 Ω or 900 W per channel into 4 Ω. It has balanced and unbalanced analogue inputs, with gain selectable at 23 or 29 dB.
Cooling is provided by natural convection, with no fans or other moving parts. Each channel has an independent power supply, while the power supplies for the voltage-amplification stages are regulated.
- Type: Power amplifier
- Channels: 2
- Technology: Solid-state
- Power into 8 Ω: 600 W per channel
- Power into 4 Ω: 900 W per channel

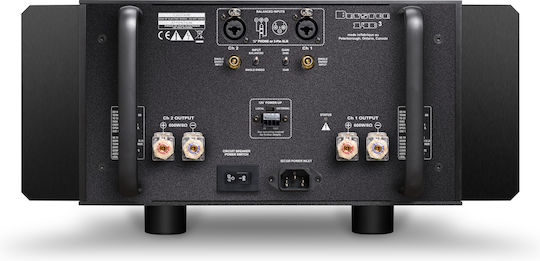

- Inputs: Balanced and unbalanced analogue
- Gain options: 23 or 29 dB
- Cooling: Natural convection
- Harmonic distortion: ≤0.005% from 20 Hz to 20 kHz at 600 W
- Noise below maximum output: -119 dB with an unbalanced connection, -120 dB with a balanced connection
- Slew rate: >60 V/μs
- Power bandwidth: 0.5 Hz to >100 kHz
- Damping factor: >500 at 20 Hz (8 Ω)
- Width: 43.2 cm
- Height: 20.6 cm
- Depth: 42.7 cm
Technical Specifications
- Type
- Power Amplifier
- Technology
- Solid
- Channels
- Stereo
- Power (8Ω)
- 600 watt / channel
- Power (4Ω)
- 900 watt / channel
- SNR
- -
Connectivity
- Phono
- No
- Optical
- No
- Coaxial
- No
- USB
- No
- Ethernet
- No
- Analog
- Yes
- Headphones
- No
- Subwoofer
- No
- Wifi
- No
- Bluetooth
- No
Features & Functions
- Streaming
- -
- Radio
- No
Dimensions
- Width
- 43.2 cm
- Length
- 42.7 cm
- Height
- 20.6 cm
